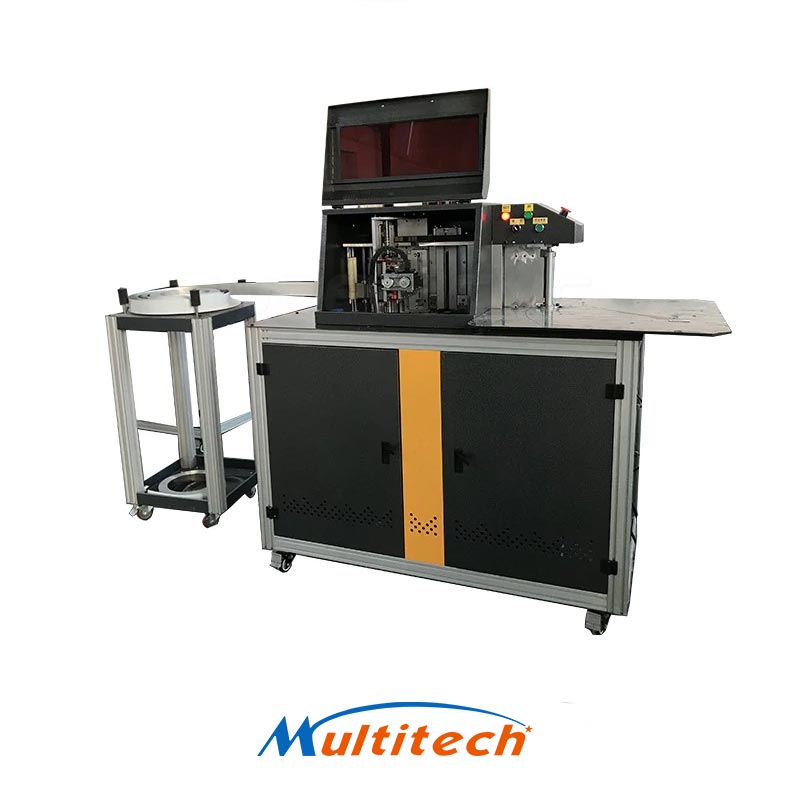

The Automatic Metal Letter Bending Machines have the friendly man-machine interface, simple configuration, and pc operation. Simply enter the processing of text, graphic design files, and then the machine can process them on materials automatically.
It is a unique three-dimensional process simulation technology, two-dimensional design file to be able to display three-dimensional effects, supplemented by translation, rotation, zoom and other functions, enables full observation and monitoring of whole working process.
The original double-bent knife parallel bending technology to save time and greatly improve the processing efficiency, the maximum bending angle reached 130°.
It is a high precision machining, feeding precision can reach 0.01mm, bending accuracy up to 0.4°. With precision automatic calibration function, based on the way of the processing material, self-adjusting process parameters, so that it can match with a variety of engraving machines and cutting machine, meet a variety of complex embedded process accuracy as much as possible.
Automatic Metal Letter Bending Machines Applications
Applicable Materials of the machines are the Aluminum strip bending, stainless steel strip bending, iron bending, galvanized steel bending and more.
Applicable Industries of the Automatic Metal Letter Bending Machines are the advertising industry, such as logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
Technical Parameters
| NAME | DESCRIPTION |
| Model | MTB 110/160/180 |
| Power Supply | AC220V |
| Rated Power | 2.2Kw |
| Input Compressed Air | 0.4-0.8Mpa |
| Weight | 400Kg |
| Number of Controlled Axis | 4 Axis |
| Bend | Automatic bend |
| The minimum bend RADIUS | 7mm |
| Inside and outside the minim angular distance | 4.5mm |
| Start to bend distances | 3mm |
| Processed material | stainless steel/iron steel/aluminum |
| Input file format | PLTIDXF |
| Control system software | Special bend for CBS4 Leetro software |
| Shipping method | Turn of the clamping feed |
| Servo motor | 2 |
| Stepping motor | 2 |
| Altitude the processing material | 20-115mm |
| Material thickness | 0.5-1.2mm |
The Automatic Metal Letter Bending Machines are ideal for the advertising industry and they will improve your business.
